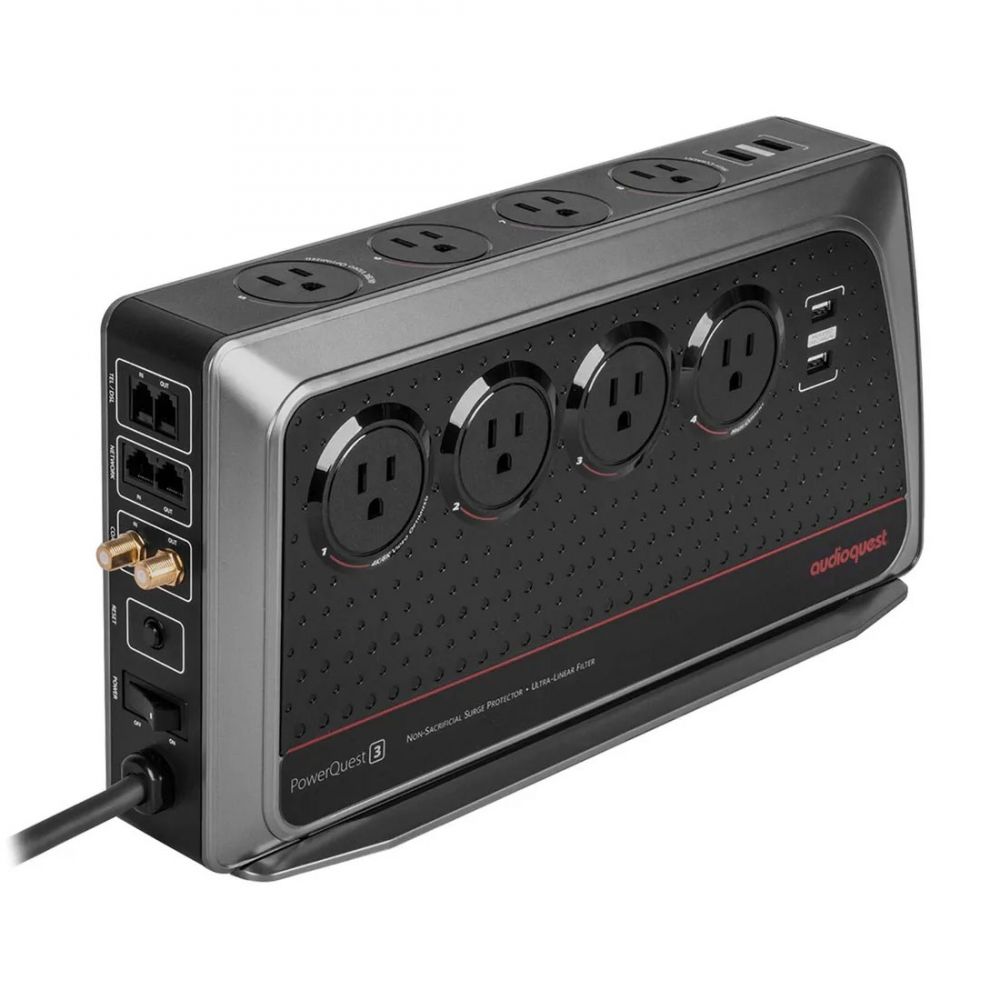

AudioQuest Power Quest 3 電源處理器

PowerQuest PQ3

 8 Outlets
• 2 x 4K/8K Video Optimized Ultra-Linear Filter Outlets
• 2 x High-Current Outlets
• 4 x Ultra-Linear Filter Outlets
Dimensions: 15.47" L x 3.15" W x 7.40" H

8 個插座
• 2 個 4K/8K 視訊優化超線性濾波器插座
• 2 個高電流插座
• 4 個超線性濾波器插座
尺寸：15.47 英吋長 x 3.15 英吋寬 x 7.40 英吋高

Enhance your audio and video entertainment experience with PowerQuest®.

Our power filtration removes more noise and distortion than most common power conditioners, dramatically improving your system"s performance. Unlike traditional surge protectors, non-sacrificial surge suppression prevents both high voltage and current from damaging your equipment, ensuring that your PowerQuest device won’t fail over time.

In addition, the PowerQuest PQ3 features both a slim profile and a rugged floor-mounting stand that makes it ideal for mounting behind cabinets. Power cords plug straight down to the top-layer AC outlets, making installation trouble free. For those who prefer shelf mounting, the bottom stand can be easily removed, permitting access to two rows of AC outlets (eight total). Sending clean power to your A/V system was never so simple or convenient.

PowerQuest Review: Everything Matters: AudioQuest Power Products

***

HOOK-UP GUIDE
The PQ3 outlets have been engineered to ensure optimum performance from your home entertainment system. For the very best results, please use the hook-up recommendations below when connecting your system to the PQ3.

OUTLETS 1, 5
4K/8K Video Optimized Ultra-Linear Filter: Best when connected to video screens, televisions, projectors, or universal players.

OUTLETS 2, 3, 6, 7
Ultra-Linear Filter: Best when connected to audio/video source components, computers, modem, or router.

OUTLETS 4, 8
High-Current: Best when connected to soundbar, power amplifier, audio/video receiver, or subwoofer.
增強您的音訊和視訊娛樂體驗使用 PowerQuest ®。

我們的電源過濾比大多數常見的電源調節器可以消除更多的噪音和失真，從而顯著提高您的系統性能。與傳統的浪湧保護器不同，非犧牲性浪湧抑制可防止高電壓和電流損壞您的設備，確保您的PowerQuest 設備不會隨著時間的推移而失敗。

此外，PowerQuest PQ3 具有纖薄的外形和堅固的落地安裝支架，非常適合安裝在機櫃後面。電源線直接插入頂層交流電源插座，安裝無憂。對於喜歡架式安裝的人來說，底部支架可以輕鬆拆卸，從而可以使用兩排交流電源插座（總共八個）。向您的 A/V 系統發送清潔電力從未如此簡單或方便。

PowerQuest 評論：一切都很重要：AudioQuest 電源產品

***

連接指南
PQ3 插座經過精心設計，可確保您的家庭娛樂系統獲得最佳性能。為了獲得最佳結果，在將您的系統連接到 PQ3 時，請使用下面的連接建議。

1號、5號出口
4K/8K 視訊優化超線性濾波器：連接到視訊螢幕、電視、投影機或通用播放器時效果最佳。

出口 2、3、6、7
超線性濾波器：連接到音訊/視訊來源元件、電腦、數據機或路由器時效果最佳。

插座 4、8
高電流：連接到條形音箱、功率放大器、音訊/視訊接收器或重低音時效果最佳。

EXTREME VOLTAGE SHUTDOWN
140VAC: Will activate the main power circuit relay to open within less than 0.25 seconds; automatically resets once the incoming power is within a safe range.

ULTRA-LINEAR FILTERS
Differential-Mode Noise Dissipation: In excess of 22dB reduction from 30kHz-1GHz; Common-Mode Noise Dissipation: In excess of 22dB reduction from 30kHz-100MHz. Both filters linearized for dynamic (rising) line impedance with frequency from 0.05 Ohms (source) and 10 to 50 Ohm load, (system current dependent).

NON-SACRIFICIAL SURGE PROTECTION
Nothing to damage with repeated 6000V/3000A input surge tests, which is the maximum that can survive a building’s AC electrical panel.

4K/8K Video Optimized Outlets
In addition to the Ultra-Linear Filters, these outlets offer additional Noise-Dissipation technology to maximize TV performance.

INPUT CURRENT MAXIMUM CAPACITY: 15 AMPS RMS

SIGNAL LINE PROTECTION: PHONE – NETWORK – CABLE/SATELLITE

USB CHARGE CAPACITY: 4X PORTS – TOTAL CAPACITY 4.8 AMPS

DIRECTIONALLY OPTIMIZED CONCENTRIC-GEOMETRY AUDIOQUEST POWER CORD
